Home / Product Category / Warping Beam / Warping Beam / 21"*21" 3parts 004
21

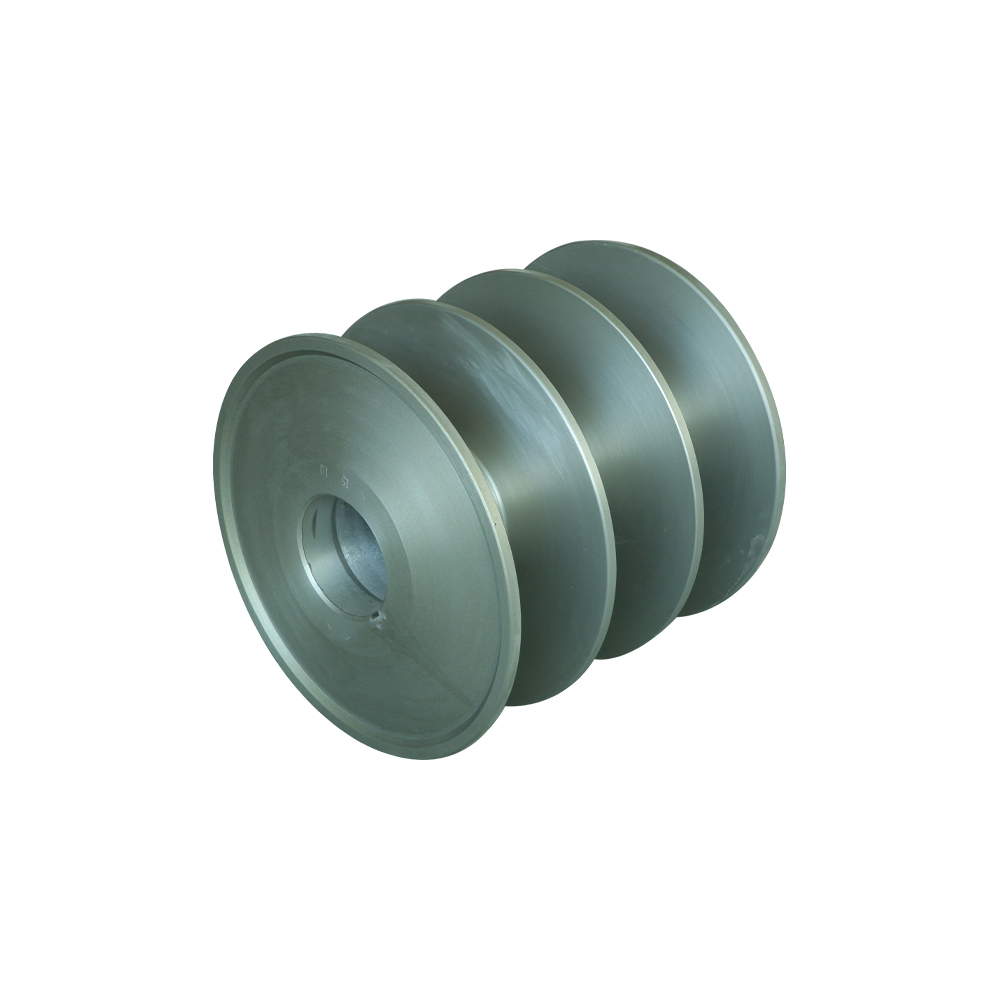

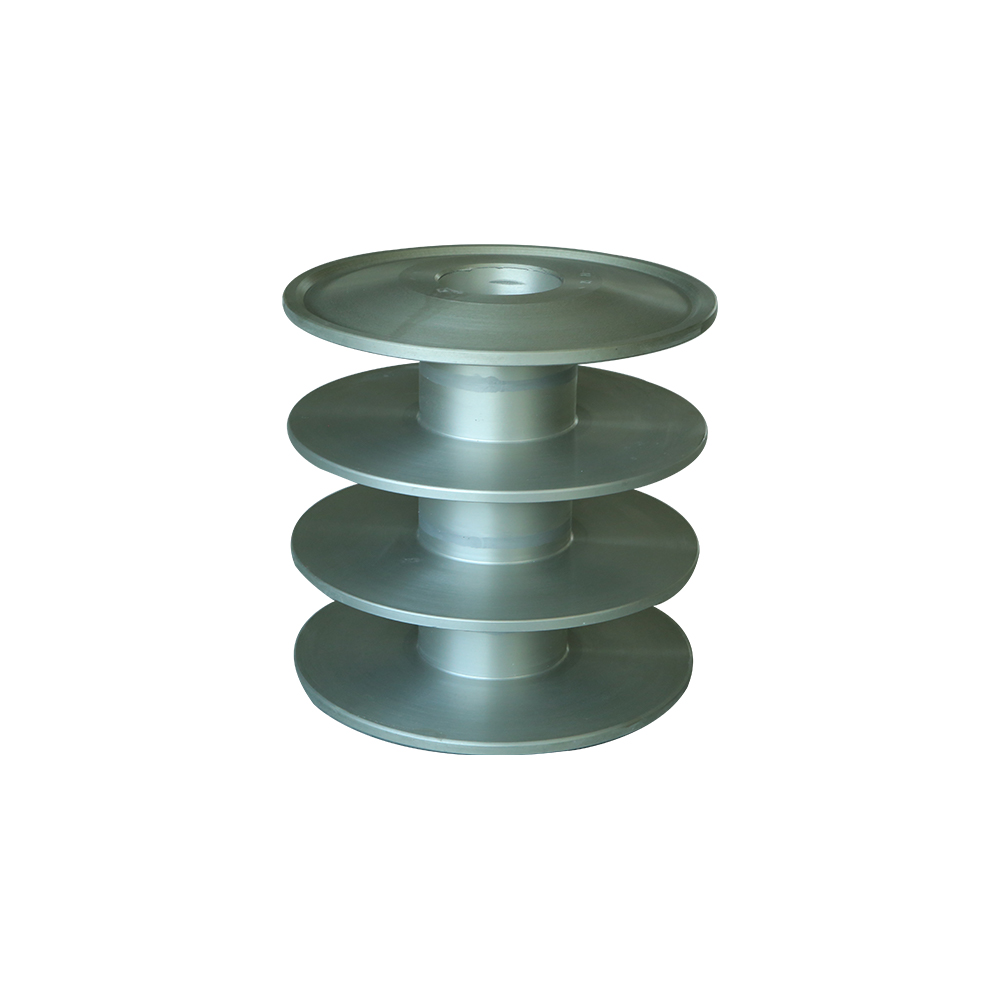

21"*21" 3parts 004

Specification:

21"*21" 3parts
  • Warping Beam
  • Warping Beam
  • Warping Beam


  • S/N
    		 ITEM DIMENSION MAXIMUM TENSION 20' FCL QTY
    D1 D2 D4 L1 L2 B W WEIGHT
    mm mm mm/inch mm mm mm mm Kgs MT Pcs
    1 21X21(470A) 535 200 152.4/6.0 530 470 159.5 19.6 34 125 220
    2 21X21(470B) 535 200 152.4/6.0 530 470 159.5 19.6 36 160 220
    3 21X21(470C) 535 230 152.4/6.0 540 470 159.5 19.6 42 260 220
    4 21X21(480A) 535 200 152.4/6.0 540 470 159.5 19.6 34 125 220
    5 21X21(480B) 535 200 152.4/6.0 540 470 159.5 19.6 36 160 220
    6 30X21(A) 762 260 152.4/6.0 540 470 159.5 19.6 72 230 156
    7 30X21(B) 762 300 152.4/6.0 540 470 159.5 19.6 85 300 156
    8 30X21(C) 762 300 152.4/6.0 540 470 159.5 19.6 96 450 156
    9 30X42 762 300 152.4/6.0 1070 982 159.5 19.6 120 550 73
    10 40x21(A) 1016 300 152.4/6.0 545 470 159.5 19.6 135 300 96
    11 40x21(B) 1016 300 152.4/6.0 545 450 159.5 19.6 180 350 96
    12 40x42 1016 300 152.4/6.0 1070 982 159.5 19.6 185 650 48

  • Herovo could customize the beam with high performance price ratio according to the needs of different customers, including yarn specification and factory targeting.
