The Main Technical Parameters:
1. Spindle linkage system is driven by 5 Japanese servo-motor, with tension inspection and feed back system.
2. Pre-drafting rate 1-3 times. Computer control and set-up to realize constand tension and best unwinding.
3. Using the German laser ranging device, real-time monitoring of the winding diameter,
outside the perimeter to ensure accuracy;
4. The original bobbin pressure compensation system that can automatically and manually adjusted to
compensate for changes in the size of the pressure tubes, To maintain constant pressure;

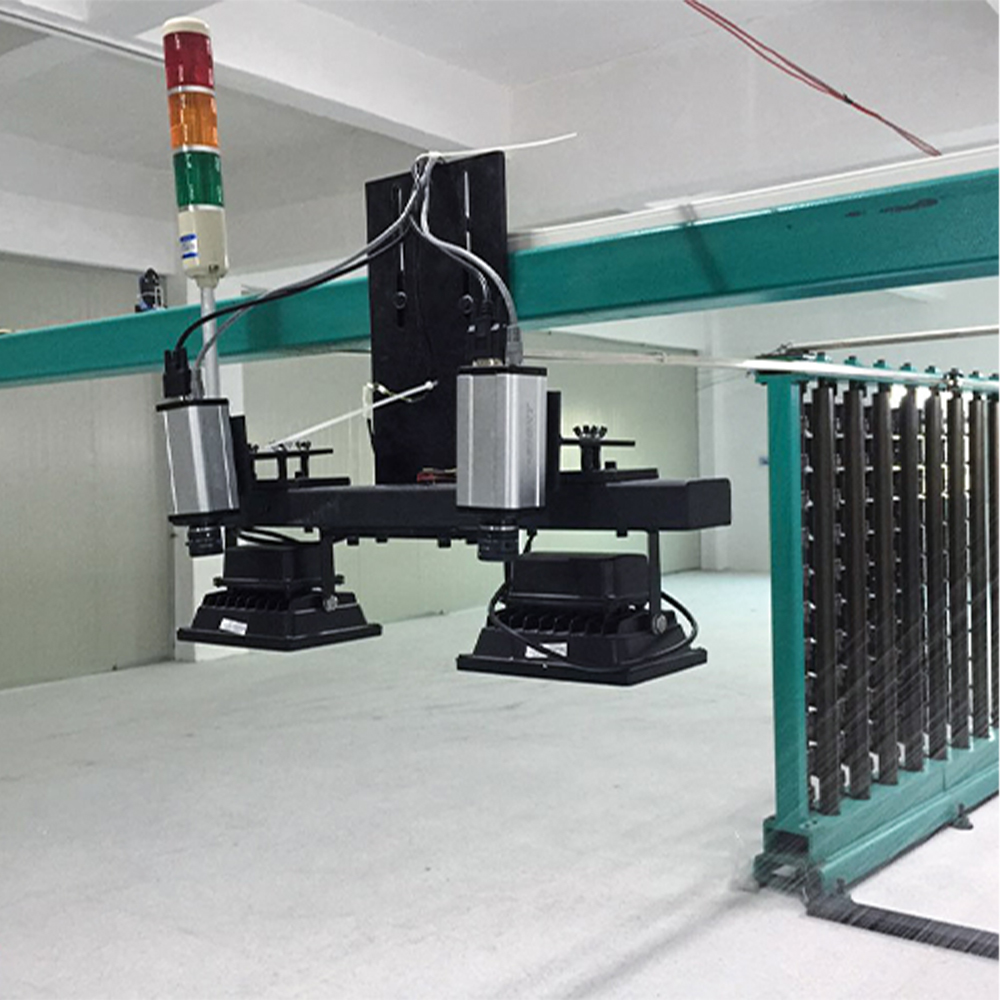

5. German High- precision camera stop device to detect yarn brekage and yarn missing.

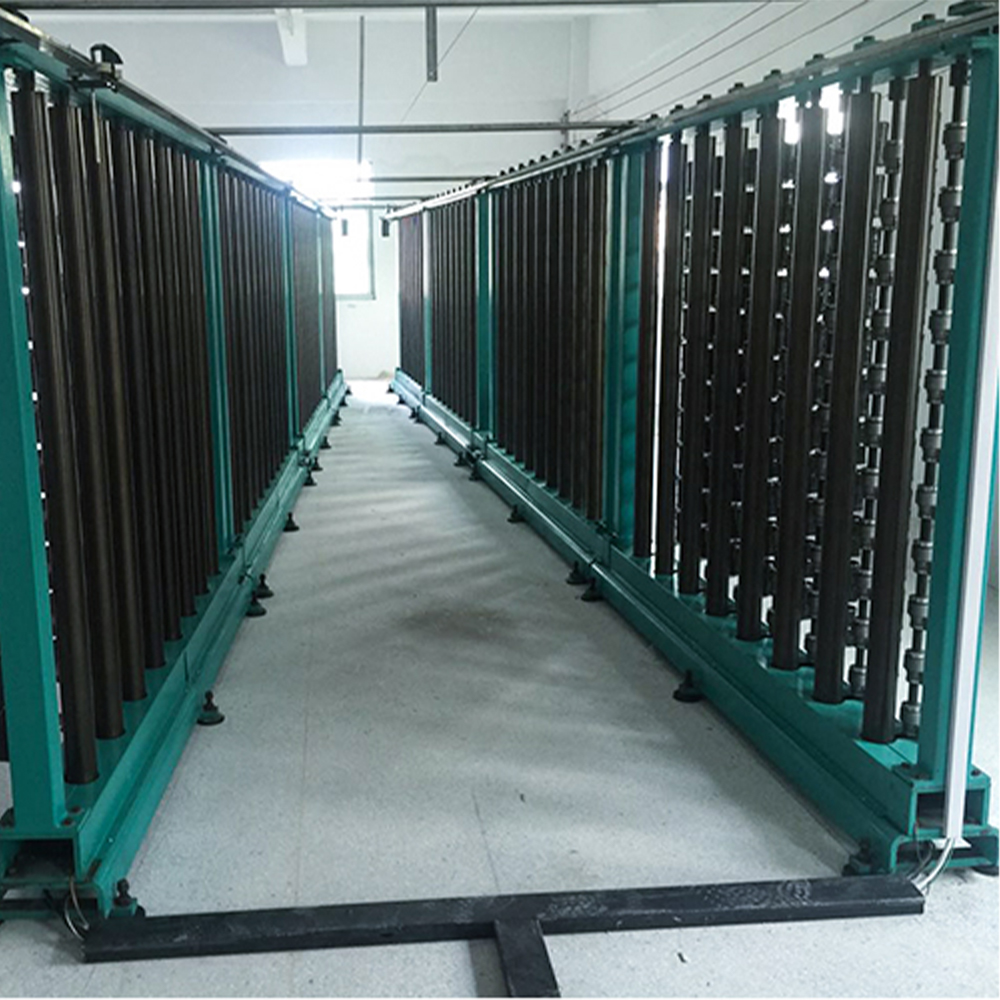

6. Upright and roller system Creel, driven by independent servo-motor directly, with pneutronic braking.
Main Features:
Beam size:
|
Φ21 "x21" (Φ535mm*535mm)
|
Warping speed:
|
0-600m / min; Creel speed: 0-300m / min
|
Pre-draft rate:
|
0 ~ 200%
|
Final draft ratio:
|
20 ~ 100%
|
Creel qty:
|
720 cones(as per buyer's request)
|
Adapted varieties:
|
20D ~ 500D
|
Bobbin size:
|
190mm*117mm(big 0.5KG-1KG); 190mm*57mm( small 1.0kg-0.5kg)
|
